# Parallel machine scheduling II, three more formulations

In [1] two formulations were discussed for a scheduling problem with multiple machines. Here we add a few more. Some of them are a bit strange. None of them really works better than the ones in [1].

So this is a collection of formulations that may sound reasonable at first, but are really not suited for this problem. If you want to read about good models, skip this post.

#### Summary of the input data

----     29 PARAMETER jobdata           proctime     release     duedate     weightsjob1            4          61          70           1job2            9          59          78           1job3            7                      67           1job4            5          21          35           1job5            5           6          17           1job6            4                      19           1job7            5          57          68           1job8            9          41          59           1job9            3                      12           1job10           7          67          82           1job11          10                      16           1job12           7           9          25           1job13          10          40          57           1job14           9          58          78           1job15           4                      26           1job16           8                      13           1job17           4                      63           1job18           5                      66           1job19           8                      45           1job20           6          25          42           1job21           5                      32           1job22           5                      32           1job23           4           5          21           1job24           4                      94           1job25           7          22          44           1job26           9          60          81           1job27           4                      37           1job28           8                      21           1job29           9          61          78           1job30           5           4          16           1job31           3                      28           1job32           7                      10           1job33           4          24          34           1job34           9          39          55           1job35           5                      23           1job36           5                      25           1job37           7          24          40           1job38           8                      38           1job39           8                      39           1job40           6                      97           1job41           6                     100           1job42           3          33          43           1job43           5          28          43           1job44           3          64          80           1job45           5          31          46           1job46           4                      93           1job47           8           2          20           1job48           7          59          76           1job49           9                      15           1job50           5          51          62           1----     33 SET precedence  precedence constraints: i must execute before j             job4        job8        job9       job10       job11       job13       job16       job20       job33job1          YESjob4                      YESjob6                                                          YESjob7                                              YESjob8                                  YES                     YES         YESjob11                                                                                 YESjob15                                                                                 YESjob18                                                                                             YESjob28                                                                                                         YESjob30                                                                                                         YES    +       job36       job37       job44job33         YES         YESjob40                                 YES
We implement a number of objectives, so we combine them and get something that is similar to what is used in practical situations.
In [1] we discussed two models:
• A time-indexed model that used the start of a job as central variable: [color{darkred}x_{j,m,t} = begin{cases} 1 & text{if job $j$ starts at time $t$ on machine $m$}\ 0 & text{otherwise}end{cases}] This model did very well.
• A continuous-time model, where we model no-overlap using standard big-M constraints based on the Alan Manne formulation to sequence jobs such that they don’t overlap [2]. This model did not do as well. It found good solutions fairly quickly but finding and proving the global optimum was challenging.

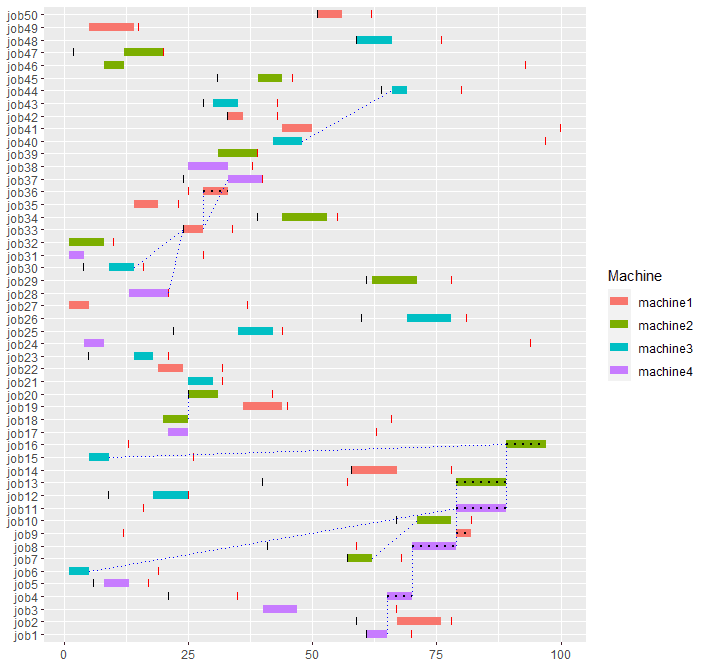

 An optimal solution

In this post I show some results with the following models:
• M3: A version of a time-indexed model that can be used when the run length of a job is not known in advance. That more general approach leads to a slower model.
• M4: A version of a continuous-time model from [3]. It is more complicated but not better than the model I used in [1].
• M5: A positional formulation. It works, but it is not competitive.

#### M3: A slow time-indexed model

Here we try to use as central variable: [color{darkred}x_{j,m,t} = begin{cases} 1 & text{if job $j$ occupies machine $m$ at time $t$} \ 0 &text{otherwise}end{cases}] This approach makes the no-overlap constraint very straightforward: [sum_j color{darkred}x_{j,m,t} le 1 >>forall m,t] To find the start and end time we can do: [begin{align} & color{darkred}{mathit{xstart}}_{j,m,t}gecolor{darkred}x_{j,m,t} – color{darkred}x_{j,m,t-1} \ & color{darkred}{mathit{xend}}_{j,m,t}gecolor{darkred}x_{j,m,t} – color{darkred}x_{j,m,t+1} \ & sum_{m,t} color{darkred}{mathit{xstart}}_{j,m,t} le 1&&forall j \ &sum_{m,t}color{darkred}x_{j,m,t}  = color{darkblue}{mathit{proctime}}_j && forall j \ & color{darkred}x_{j,m,t}  in {0,1} \ & color{darkred}{mathit{xstart}}_{j,m,t}, color{darkred}{mathit{xend}}_{j,m,t} in [0,1] end{align}] The first two inequalities implement the implications [begin{align} & color{darkred}x_{j,m,t-1}= 0 > mathbf{and}> color{darkred}x_{j,m,t}=1 Rightarrow color{darkred}{mathit{xstart}}_{j,m,t} = 1 \ & color{darkred}x_{j,m,t}= 1 >mathbf{and}>color{darkred}x_{j,m,t+1}= 0 Rightarrow color{darkred}{mathit{xend}}_{j,m,t} = 1end{align}] The condition that we have maximum one start has two implications: first we have one start and thus one consecutive production run (without holes) and second that the production run is executed on one machine.
 Relation between x, xstart and xend.

It is noted that (color{darkred}x_{j,m,t}) is a real binary variable. The variables (color{darkred}{mathit{xstart}}_{j,m,t}) and (color{darkred}{mathit{xend}}_{j,m,t}) can be continuous between 0 and 1.

I also added the constraint [sum_{m,t} color{darkred}{mathit{xend}}_{j,m,t} le 1] to enforce that otherwise unrestricted (color{darkred}{mathit{xend}}) variables are set to zero. This makes it easier to calculate the (color{darkred}{mathit{obj}}_{mathit{numtardy}}) objective.
The complete model can look like:
Model M3: Slow time indexed model
[begin{align}
min&sum_{mathit{objs}} color{darkblue}{mathit{objw}}_{mathit{objs}} cdot color{darkred}{mathit{obj}}_{mathit{objs}} && \
hline
& color{darkred}{mathit{obj}}_{mathit{completion}} = sum_j color{darkblue}w_j cdot color{darkred}{mathit{completion}}_j && \
& color{darkred}{mathit{obj}}_{mathit{sumtardy}} = sum_j color{darkblue}w_j cdot color{darkred}{mathit{tardy}}_j \
& color{darkred}{mathit{obj}}_{mathit{numtardy}} = sum_{j,m,t|tgecolor{darkblue}{mathit{due}}(j)}color{darkred}{mathit{xend}}_{j,m,t} \
& color{darkred}{mathit{obj}}_{mathit{maxtardy}} ge color{darkred}{mathit{tardy}}_j && forall j \
& color{darkred}{mathit{obj}}_{mathit{makespan}} ge color{darkred}{mathit{completion}}_j && forall j\ hline& color{darkred}{mathit{xstart}}_{j,m,t}gecolor{darkred}x_{j,m,t} – color{darkred}x_{j,m,t-1} \
& color{darkred}{mathit{xend}}_{j,m,t}gecolor{darkred}x_{j,m,t} – color{darkred}x_{j,m,t+1} \ & sum_{m,t} color{darkred}{mathit{xstart}}_{j,m,t} le 1&&forall j \
& sum_{m,t} color{darkred}{mathit{xend}}_{j,m,t} le 1&&forall j \
&sum_{m,t}color{darkred}x_{j,m,t}  = color{darkblue}{mathit{proctime}}_j && forall j \
&sum_j color{darkred}x_{j,m,t} le 1 && forall m,t\
& color{darkred}{mathit{start}}_j  = sum_{m,t} t cdot color{darkred}{mathit{xstart}}_{j,m,t} && forall j \ & color{darkred}{mathit{completion}}_j  = color{darkred}{mathit{start}}_j +color{darkblue}{mathit{proctime}}_j  && forall j\ &color{darkred}{mathit{tardy}}_j gecolor{darkred}{mathit{completion}}_j -color{darkblue}{mathit{due}}_j&& forall j\ &color{darkred}{mathit{completion}}_i lecolor{darkred}{mathit{start}}_j && forall i,j|color{darkblue}{mathit{precedence}}_{i,j} && \ hline & color{darkred}x_{j,m,t} in {0,1} && \ &color{darkred}{mathit{xstart}}_{j,m,t}, color{darkred}{mathit{xend}}_{j,m,t} in [0,1]\ & color{darkred}{mathit{obj}}_{mathit{objs}} ge 0 \ & color{darkred}{mathit{tardy}}_j ge 0 \ &color{darkred}{mathit{start}}_j  ge color{darkblue}{mathit{release}}_j end{align}]
This model works, but it is slow. This formulation is more often used in situations where the run lengths are not fixed. An example is:  a power generator can only be turned on at most (n) times during a time period to prevent excessive wear and tear. Here the situation is slightly different: we know there is exactly one production run for a given job and its length is fixed.
model m1
time-indexed
model m2
continuous-time
model m3
time-indexed
Equations 626 10,026 40,726
Variables 20,158 1,633 60,158
binary 20,000 1,475 20,000
Nonzero elements 191,024 49,896 250,752
Objective 324.096 324.102 437.303
completion 2,096 2,102 2,303
sumtardy 322 322 435
maxtardy 84 84 87
numtardy 7 7 14
makespan 97 97 100
Time (seconds) 20 1800 (time limit) 1800 (time limit)
Gap optimal 0.13% 30%
Nodes 529 1,262,868 5,317
Iterations 28,553 5,463,876 13,311,418

The conclusion is that relatively minor variations in a model can lead to very different performance. Also, a formulation that exploits as much as possible of the problem at hand (in this case: fixed run lengths), is likely the best.

#### M4: an alternative, complex continuous-time model

In [1] a very simple continuous-time model was implemented, based on the implication:
if jobs (i) and (j) execute on the same machine then job (j) ends before job (i) starts or job (j) starts after job (i) ends.
This was implemented as: [begin{align} &color{darkred}{mathit{completion}}_i le color{darkred}{mathit{start}}_j + color{darkblue} M cdot (1-color{darkred}x_{i,m}) +color{darkblue} M cdot (1-color{darkred}x_{j,m}) + color{darkblue} M cdot color{darkred} delta_{i,j} && forall ilt j, forall m \ & color{darkred}{mathit{completion}}_j le color{darkred}{mathit{start}}_i + color{darkblue} M cdot (1-color{darkred}x_{i,m}) +color{darkblue} M cdot (1-color{darkred}x_{j,m}) + color{darkblue} M cdot (1- color{darkred} delta_{i,j}) && forall ilt j, forall m \ & color{darkred} delta_{i,j} in {0,1}end{align}] Note that all comparisons are only for (ilt j). Here (color{darkred}x) indicates the assignment of jobs to machines and (color{darkred} delta) implements the or condition. The constant (color{darkblue}M) should be equal to the length of the planning period.
In [3], a more convoluted version of this approach is proposed. Let’s see how it behaves.
We introduce the following variables: [begin{aligned}& color{darkred}x_{j,m}=begin{cases} 1 & text{if job $j$ is assigned to machine $m$} \ 0 & text{otherwise}end{cases}\ & color{darkred}delta_{i,j} = begin{cases} 1 & text{if job $i$ executes before job $j$ on the same machine}\ 0 & text{otherwise}end{cases} \ &color{darkred}d_{i,j} = begin{cases} 1 & text{if jobs $i$ and $j$ execute on different machines}\ 0 & text{otherwise}end{cases}end{aligned}]
The first constraint is [color{darkred}delta_{i,j} + color{darkred}delta_{j,i}+color{darkred}d_{i,j} = 1>>forall i lt j] This means: jobs (i) and (j) are on different machines or they don’t overlap. The second constraint, the transitivity constraint, is a bit of mystery to me: [color{darkred}delta_{i,j} +color{darkred}delta_{j,k} + color{darkred}delta_{k,i}le 2 >>forall i lt j lt k] I don’t think this constraint is needed. It may have been added to strengthen the formulation. The next constraint [color{darkred}x_{i,m}+color{darkred}x_{j,m}+color{darkred}d_{i,j}le 2 >>forall ilt j] can be considered as an implication [color{darkred}x_{i,m}=color{darkred}x_{j,m}=1 Rightarrow color{darkred}d_{i,j}=0] I.e. if jobs (i) and (j) are on same the machine, we need to have (color{darkred}d_{i,j}=0). This is used in the no-overlap (first) constraint. Obviously we have the assignment constraint: [sum_m color{darkred}x_{i,m}=1>>forall i] Finally, we have the completion times to consider: [color{darkred}{mathit{completion}}_j ge color{darkred}{mathit{completion}}_i +   color{darkblue}{mathit{proctime}}_j(color{darkred}delta_{i,j}+color{darkred}x_{i,m}+color{darkred}x_{j,m}-2) – color{darkblue}M(1-color{darkred}delta_{i,j})>>forall i,j,m] Instead, we can use the simpler: [color{darkred}{mathit{start}}_j ge color{darkred}{mathit{completion}}_i –  color{darkblue}M(1-color{darkred}delta_{i,j})>>forall ine j, m] Note that I explicitly excluded the case (i=j) which is a bit more precise.
The complete model can be summarized as follows:
Model M4: Alternative continuous-time model
[begin{align}min&sum_{mathit{objs}} color{darkblue}{mathit{objw}}_{mathit{objs}} cdot color{darkred}{mathit{obj}}_{mathit{objs}} && \ hline & color{darkred}{mathit{obj}}_{mathit{completion}} = sum_j color{darkblue}w_j cdot color{darkred}{mathit{completion}}_j \ & color{darkred}{mathit{obj}}_{mathit{sumtardy}} = sum_j color{darkblue}w_j cdot color{darkred}{mathit{tardy}}_j \ & color{darkred}{mathit{obj}}_{mathit{numtardy}} = sum_j color{darkred}{mathit{isTardy}}_j \ & color{darkred}{mathit{obj}}_{mathit{maxtardy}} ge color{darkred}{mathit{tardy}}_j && forall j\ & color{darkred}{mathit{obj}}_{mathit{makespan}} ge color{darkred}{mathit{completion}}_j && forall j\ hline &color{darkred}delta_{i,j} + color{darkred}delta_{j,i}+color{darkred}d_{i,j} = 1&& forall i lt j \ &color{darkred}delta_{i,j} +color{darkred}delta_{j,k} + color{darkred}delta_{k,i}le 2  &&forall i lt j lt k\ & color{darkred}x_{i,m}+color{darkred}x_{j,m}+color{darkred}d_{i,j}le 2 && forall ilt j \ & sum_m color{darkred}x_{j,m}=1 && forall j \ & color{darkred}{mathit{completion}}_ j = color{darkred}{mathit{start}}_ j + color{darkblue}{mathit{proctime}}_ j && forall j  \ & color{darkred}{mathit{start}}_j ge color{darkred}{mathit{completion}}_i –  color{darkblue}M(1-color{darkred}delta_{i,j})&&forall ine j, m \ & color{darkred}{mathit{tardy}}_j gecolor{darkred}{mathit{completion}}_j -color{darkblue}{mathit{due}}_j && forall j\ &color{darkred}{mathit{tardy}}_j le color{darkblue}M cdotcolor{darkred}{mathit{isTardy}}_j&& forall j \ &color{darkred}{mathit{completion}}_i lecolor{darkred}{mathit{start}}_j && forall i,j|color{darkblue}{mathit{precedence}}_{i,j} \ hline & color{darkred}x_{j,m}in {0,1}  \ & color{darkred}delta_{i,j} in {0,1} \ & color{darkred}d_{i,j} in [0,1]\ &color{darkred}{mathit{isTardy}}_jin {0,1} \ & color{darkred}{mathit{obj}}_{mathit{objs}} ge 0 \ & color{darkred}{mathit{tardy}}_j ge 0 \ & color{darkred}{mathit{start}}_j  ge max(1,color{darkblue}{mathit{release}}_j) end{align}]

The performance is as follows:

model m1
time-indexed
model m2
continuous-time
model m4
continuous-time
Equations 626 10,026 28,451
Variables 20,158 1,633 4,133
binary 20,000 1,475 2,750
Nonzero elements 191,024 49,896 85,571
Objective 324.096 324.102 324.139
completion 2,096 2,102 2,139
sumtardy 322 322 322
maxtardy 84 84 84
numtardy 7 7 7
makespan 97 97 97
Time (seconds) 20 1800 (time limit) 1800 (time limit)
Gap optimal 0.13% 0.15%
Nodes 529 1,262,868 114,732
Iterations 28,553 5,463,876 3,455,261
Notes:
• The performance is very close to model M2. This formulation does not add much value above the more intuitive and simpler model M2. The M2 model is easier to remember. More complex models are not necessarily better.
• I don’t know what the purpose is of the transitivity constraint.
• Some of the constraints should have (forall ine j) instead of (forall i,j).
• Of course, we can add ordering constraints to reduce symmetry. I used: machine (m) has more jobs (or the same number) than machine (m+1). As the machines in my model are identical, we can renumber machines.

#### M5: positional formulation.

This is also from [3]. Here we use as central variable: [color{darkred}x_{j,m,p}=begin{cases} 1 & text{if job $j$ has position $p$ on machine $m$}\ 0 & text{otherwise}end{cases}] The assignment constraints related to this variable are: [begin{align}&sum_{m,p}color{darkred}x_{j,m,p}=1 &&forall j \ &sum_jcolor{darkred}x_{j,m,p}le 1 &&forall m,p end{align}] The corresponding completion time is denoted by (color{darkred}f_{m,p}).  We have: [color{darkred}f_{m,p} ge color{darkred}f_{m,p-1} + sum_j color{darkblue}{mathit{proctime}}_jcdot color{darkred}x_{j,m,p}] We assume here the first position is 1 and (color{darkred}f_{m,0}=1) (this is because my first time period is 1 and completion time is at the beginning of a time period). Finally we link the job completion time through: [color{darkred}{mathit{completion}}_j ge  color{darkred}f_{m,p} – color{darkblue}M(1-color{darkred}x_{j,m,p}) >>forall j,m,p ]
To allow for release dates and precedence constraints, we need to add: [begin{align}& color{darkred}f_{m,p} ge sum_j (color{darkblue}{mathit{release}}_j+color{darkblue}{mathit{proctime}}_j)cdot color{darkred}x_{j,m,p}\ & color{darkred}f_{m,p} ge color{darkred}{mathit{completion}}_i + color{darkblue}{mathit{proctime}}_jcdot color{darkred}x_{j,m,p} – color{darkblue}Mcdot (1-color{darkred}x_{j,m,p})&& forall i,j|color{darkblue}{mathit{precedence}}_{i,j} end{align}] The last constraint is not in [3]: they only consider release dates but no precedence constraints.
Model M5: Positional model
[begin{align}
min&sum_{mathit{objs}} color{darkblue}{mathit{objw}}_{mathit{objs}} cdot color{darkred}{mathit{obj}}_{mathit{objs}} && \ hline

& color{darkred}{mathit{obj}}_{mathit{completion}} = sum_j color{darkblue}w_j cdot color{darkred}{mathit{completion}}_j \ & color{darkred}{mathit{obj}}_{mathit{sumtardy}} = sum_j color{darkblue}w_j cdot color{darkred}{mathit{tardy}}_j \
& color{darkred}{mathit{obj}}_{mathit{numtardy}} = sum_j color{darkred}{mathit{isTardy}}_j \ & color{darkred}{mathit{obj}}_{mathit{maxtardy}} ge color{darkred}{mathit{tardy}}_j && forall j\
& color{darkred}{mathit{obj}}_{mathit{makespan}} ge color{darkred}{mathit{completion}}_j && forall j\ hline

&sum_{m,p}color{darkred}x_{j,m,p}=1 &&forall j \
& sum_jcolor{darkred}x_{j,m,p}le 1 &&forall m,p \
& color{darkred}f_{m,p} ge color{darkred}f_{m,p-1} + sum_j color{darkblue}{mathit{proctime}}_jcdot color{darkred}x_{j,m,p} &&forall m,p\
& color{darkred}f_{m,0}=1 \
& color{darkred}f_{m,p} ge sum_j (color{darkblue}{mathit{release}}_j+color{darkblue}{mathit{proctime}}_j)cdot color{darkred}x_{j,m,p} && forall m,p \
& color{darkred}f_{m,p} ge color{darkred}{mathit{completion}}_i + color{darkblue}{mathit{proctime}}_jcdot color{darkred}x_{j,m,p} – color{darkblue}Mcdot (1-color{darkred}x_{j,m,p})&& forall i,j|color{darkblue}{mathit{precedence}}_{i,j},m,p \
& color{darkred}{mathit{completion}}_j ge  color{darkred}f_{m,p} – color{darkblue}M(1-color{darkred}x_{j,m,p}) && forall j,m,p \

& color{darkred}{mathit{completion}}_ j = color{darkred}{mathit{start}}_ j + color{darkblue}{mathit{proctime}}_ j && forall j  \
& color{darkred}{mathit{tardy}}_j gecolor{darkred}{mathit{completion}}_j -color{darkblue}{mathit{due}}_j && forall j\
&color{darkred}{mathit{tardy}}_j le color{darkblue}M cdotcolor{darkred}{mathit{isTardy}}_j&& forall j \
&color{darkred}{mathit{completion}}_i lecolor{darkred}{mathit{start}}_j && forall i,j|color{darkblue}{mathit{precedence}}_{i,j} \ hline

& color{darkred}x_{j,m,p}in {0,1}  \
& color{darkred}f_{m,p} ge 1 \
&color{darkred}{mathit{isTardy}}_jin {0,1} \
& color{darkred}{mathit{obj}}_{mathit{objs}} ge 0 \
& color{darkred}{mathit{tardy}}_j ge 0 \
& color{darkred}{mathit{start}}_j  ge max(1,color{darkblue}{mathit{release}}_j)
end{align}]

We can add a few refinements. First, we can renumber the machines as they are identical. I reduce symmetry by ordering the machines by how many jobs they execute. The second source of symmetry is that we can have “empty” positions in this model. I added a constraint to make sure the empty, unused positions are at the end and not in the middle. This also adds a symmetry-breaking effect to the model. After this we see:

model m1
time-indexed
model m2
continuous-time
model m5
positional formulation
Equations 626 10,026 5,742
Variables 20,158 1,633 4,368
binary 20,000 1,475 4,050
Nonzero elements 191,024 49,896 36,564
Objective 324.096 324.102 324.135
completion 2,096 2,102 2,135
sumtardy 322 322 322
maxtardy 84 84 84
numtardy 7 7 7
makespan 97 97 97
Time (seconds) 20 1800 (time limit) 1800 (time limit)
Gap optimal 0.13% 0.14%
Nodes 529 1,262,868 49,186
Iterations 28,553 5,463,876 2,368,537
Notes:
• This model is not as effective as the models in [1].
• There are some interesting possibilities to reduce symmetry in this model.

#### Conclusion

There are many formulations for this problem, choosing the right one can pay off.
Different formulations are also an excellent debugging tool: they all should deliver the same optimal objective. We also can plug in a solution from one model into another (using mipstart or by fixing): it should be accepted without hesitancy. Complex models are not so easy to get right immediately, so an extra tool to verify solutions is valuable.

#### References

1. Parallel machine scheduling I, two formulations, https://yetanothermathprogrammingconsultant.blogspot.com/2021/03/parallel-machine-scheduling-i-two.html
2. Manne, Alan S. “On the Job-Shop Scheduling Problem.” Operations Research, vol. 8, no. 2, 1960, pp. 219–223.
3. Yasin Unlu, Scott J. Mason, Evaluation of mixed integer programming formulations for non-preemptive parallel machine scheduling problems, Computers & Industrial Engineering 58 (2010) 785–800.
